Expanding Foam Systems - Spray Foam & Injection Foam Kits



We have expanding foam systems for both spray applied foam applications and applications where injection foam is required. All the foam kits consist of the following parts:

  • Pre-pressurised Foam tanks containing the chemicals
  • A hose and gun assembly for mixing and applying the foam
  • Special nozzles to suit the application (sprayed foam, injection nozzles, caulking nozzles)

Gun & hose assemblies are reusable i.e. you can purchase multiple sets of tanks and use one gun set. Nozzles are consumables and we recommend using a minimum of 10 nozzles per set of tanks.



FP-180 Expanding Foam System

This is a disposable expanding foam kit, which will produce approximately 400 litres of expanded foam. It is available as a spray foam or an injection foam. Spray-on foam & Injection foam explained

This is sufficient to cover approximately 16m2 (180 sq. feet) at 1 inch thickness. This size of kit is ideally suited to small to medium DIY spray insulation projects like roof, wall and ceiling insulation.
This model foam kit comprises 2 foam tanks (A & B component) and requires a separate 2.9m hose and foam spray gun assembly, 10 nozzles, vaseline and wrench to connect the foam spray gun to the foam tanks. Replacement foam tanks can be ordered where the foam spray gun is re-used.

Best used for medium size jobs like:

  • Dormer window insulation
  • Stage prop foam & art
  • Sealing cold store joints
  • Insulating small areas

How much coverage do I get with this kit?


Foam Tanks: £214.08 (incl. VAT)

Cure rate:


Complete kit (tanks & 2.9m Gun set): £302.28 (incl. VAT)
Cure rate:



FP-600 Expanding Foam System

This is a disposable expanding foam kit supplied with each of the 2 foam components in separate boxes. This kit will produce approximately 1330 litres of expanded foam, and is available as a spray foam or an injection foam. Spray-on foam & Injection foam explained



This is sufficient to cover approximately 55m2 (600 sq. feet) at 1 inch thickness. This foam kit requires a 4.6m (15 foot) hose and gun assembly, 10 nozzles, vaseline and a wrench. Separate replacement foam tanks can also be ordered where the foam spray gun is re-used.





Best used for large jobs like:

  • Boat insulation
  • Loft and roof insulation
  • Cellar insulation
  • Cavity wall insulation
  • Garage insulation

How much coverage do I get with this kit?


Foam Tanks: £449.66 (incl. VAT)

Cure rate:

Special Offer!
Complete kit including FP-600 foam tanks & 4.6m gun set £531.78 (incl VAT)

Cure rate:



Constant Pressure Dispensing System

The constant pressure dispensing system is designed for foaming very large areas or for spray foam contractors looking for a cost effective foam machine.

This machine combines the simplicity of disposable foam kits with the higher flowrates of a machine system. Click here for more information on the CPDS system

Price: £2700-00 (incl. VAT)

CPDS tanks £588-00


Spray Foam Nozzles

Spare nozzles to fit the medium and large foam kits are available if required.

Two types of nozzles are available: Cone nozzles, which produce a cone-shaped spray pattern, and fan-tip nozzles, which produce a flat fan-shaped pattern which is suitable for spraying foam onto large flat areas like lofts, ceilings, walls and roofs . Click here for more detail on the nozzle types.


Price: £12.72 (incl. VAT)
Nozzle type:

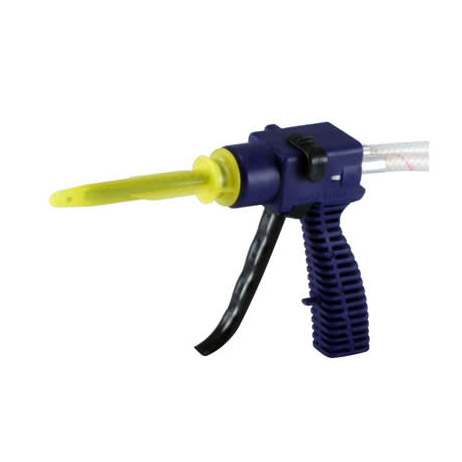

Gun & Hose Assemblies

Spare Gun Assemblies are available in 2.9m (10 foot) or 4.6m (15 foot) lengths.

Each set is supplied complete with 10 nozzles, wrench & vaseline.



2.9m (10 foot) kit: £88.20 (incl VAT)

4.6m kit: £93.62 (incl. VAT)
Gun length:


Checkout

Please click on the basket on the right to view the contents of your shopping basket, and to proceed to the checkout

We accept most cards, but not American Express

Delivery costs are automatically calculated at checkout based on the weight of your order. Typically, you will pay £24-00 for delivery of a medium kit and £36-00 for delivery of a large kit. Please note this excludes delivery to Scotland, UK islands, Northern Ireland & Southern Ireland.

Due to changes in the way most couriers interpret the regulations for the transport of chemical products, standard delivery times have increased to 5-7 working days. Please take this into consideration when planning your kit purchase. For deliveries to offshore Islands and Europe, please contact us.

Depending on stock levels, we may substitute products with kits from an alternative manufacturer. If this happens, we guarantee that in all cases, kit sizes, quality and yield will be the same or better.

Terms and Conditions of Sale

Privacy Policy

All prices include VAT at 20%





Foam Coverage Chart

Kit size 25mm thickness 50mm thickness 75mm thickness 100mm thickness
Small kit FP-180 16m2 8m2 5.3m2 4m2
Large Kit FP-600 55m2 27.5m2 18m2 13.8m2
